Cylindrical Roller Bearing NU202

Cylindrical Roller Bearing NU202 Featured Image
  • Cylindrical Roller Bearing NU202

Short Description:

Item :  NU202 NJ202 RN202 N202 NF202 MUP202

Cage :EM , E, TVP

Email: hzvbearings@gamil.com

WhatsApp:8613561222997

Phone: 8613561222997

Cylindrical Roller Bearing


  • twitter3
  • facebook_facebook52
  • ins
  • Linkedin
  • Linkedin

Product Detail

Product Tags

Cylindrical Roller Bearings NU202 are bearing in which cylinders are used as the rolling elements as opposed to balls in ball bearings.As such, the rollers have a greater (linear) contact area with the outer ring and are distribute loads across a broader surface.

Subsequently, they have a relatively high radial load capacity and are suitable for high speeds. Double-row cylindrical roller bearings have high radial rigidity and are used primarily for precision machine tools.

Manufacturers of bearings, such as FAG, KOYO, NSK, SKF, SNR, etc. assign different suffixes for their characteristics, for better orientation take note of the comparison table of bearings (see further information)

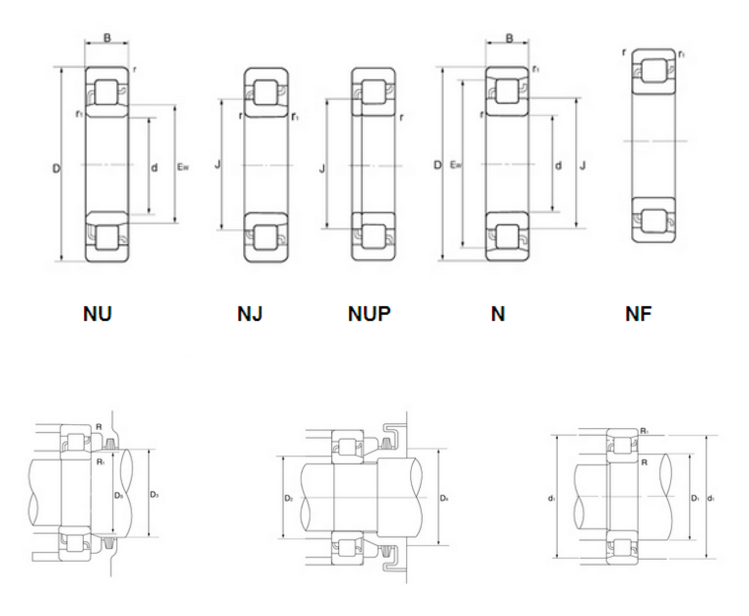

Main Dimensions & Performance Data

HZV BEARING
HZV Cylindrical Roller Bearings NU NJ 202

Dimensions

d
15 mm
 Bore diameter
D
35 mm
 Outside diameter
B
11 mm
 Width
D1
≈27.7 mm
 Shoulder diameter of outer ring
F
19.3 mm
 Raceway diameter of inner ring
r1,2
min.0.6 mm
 Chamfer dimension
r3,4
min.0.3 mm
 Chamfer dimension
s
max.1 mm
 Permissible axial displacement

Features of HZV Cylindrical Roller Bearing

Shandong Nice Bearing Manufacture Co. Ltd, established in 2010, is a supplier of bearing, roller bearing ,ball bearing,pillow block bearing, rod ends bearing ,needle roller bearing,screw bearings and slider bearings and slewing support bearings and so on.We have exported more than 100countries like USA, Mexico,Canada, Spain, Russia,Singapore,Thailand, India etc.We are committed to creating a one-stop shopping platform for customers to save time, improve efficiency with the best price and quality to win the trust of customers. Win-win cooperation is our company's business philosophy.

The bearing company HZV is the largest premium manufacturer of bearings and other technical products for industrial use. It was founded as early as 2010 and today is known worldwide for its quality, reliability and innovative items.

HZV offers a wide range of products for various industries such as automotive, aviation, chemical, food, energy, pharmaceutical and we could list more. The company is best known for its HZV bearings, which are made of the best materials and have a long service life.

HZV is committed to sustainable development and strives to reduce the consumption of energy, water and other resources during the production phase, and for their products to enable the same.
