Spherical roller bearings

Short Description:

Spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis


  • twitter3
  • facebook_facebook52
  • ins
  • Linkedin
  • Linkedin

Product Detail

Product Tags

Product Description

Spherical roller bearings 22308 CA/CC/MB/E/W33

SIZE:40*90*23MM

WEIGHT:0.75kg

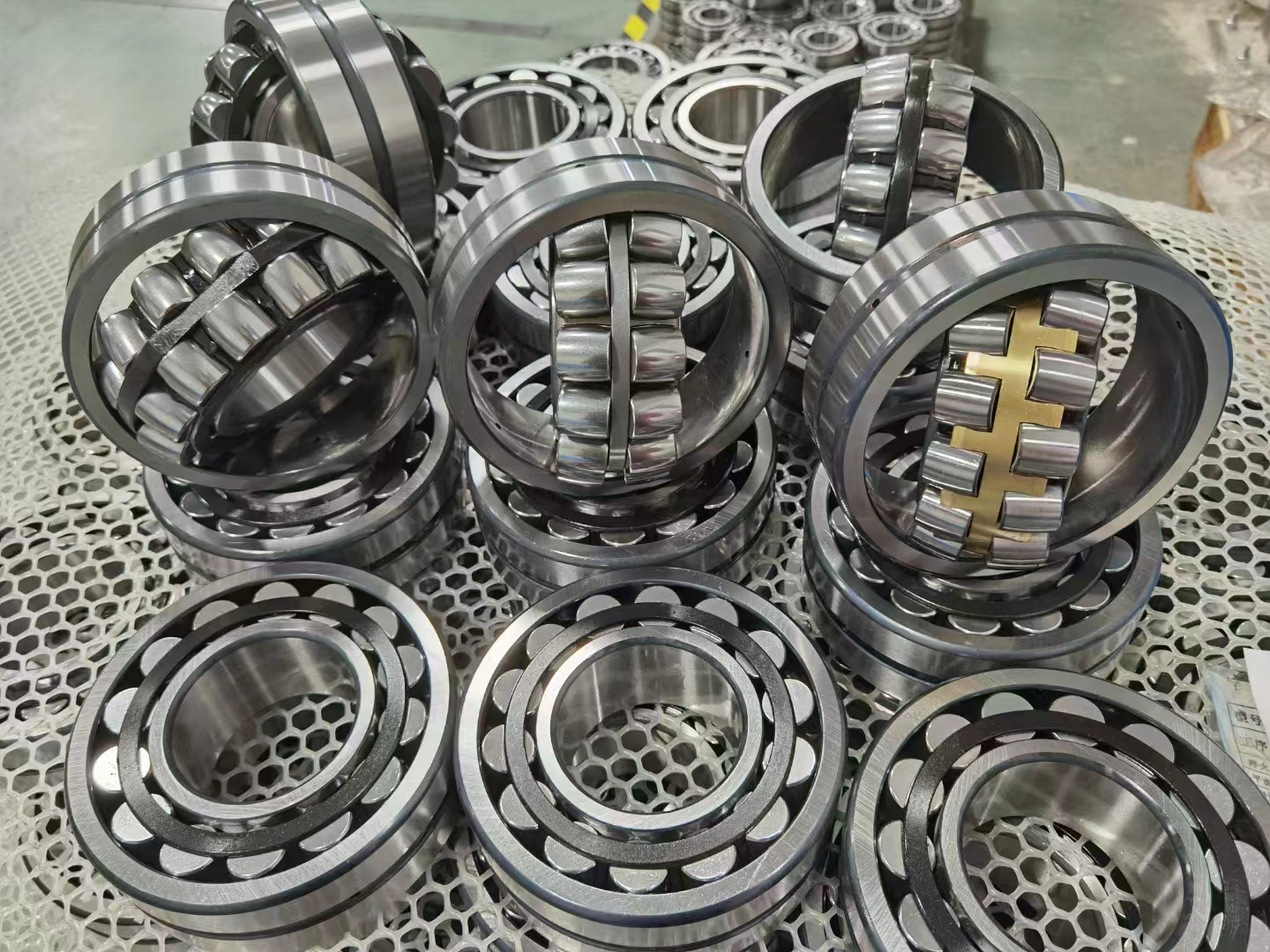

Spherical roller bearings

Spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis.

28

Model

Old Model

Cage Type

d

D

B

Weight/kg

22308

3608

CA/CC/MB/E/W33

40

90

23

0.75

22309

3609

CA/CC/MB/E/W33

45

100

36

1.39

22310

3610

CA/CC/MB/E/W33

45

110

40

1.84

22311

3611

CA/CC/MB/E/W33

55

120

43

2.31

22312

3612

CA/CC/MB/E/W33

60

130

46

2.93

22313

3613

CA/CC/MB/E/W33

65

140

48

3.56

22314

3614

CA/CC/MB/E/W33

70

150

31

4.4

22315

3615

CA/CC/MB/E/W33

75

160

55

5.25

22316

3616

CA/CC/MB/E/W33

80

170

58

6.39

22317

3617

CA/CC/MB/E/W33

85

180

60

7.3

22318

3618

CA/CC/MB/E/W33

90

190

64

8.6

22319

3619

CA/CC/MB/E/W33

95

002

67

10

22320

3620

CA/CC/MB/E/W33

100

215

73

13

22322

3622

CA/CC/MB/E/W33

110

240

80

18

22324

3624

CA/CC/MB/E/W33

120

092

86

22.3

22326

3626

CA/CC/MB/E/W33

130

280

93

28.5

22328

3628

CA/CC/MB/E/W33

140

300

102

34.5

22330

3630

CA/CC/MB/E/W33

150

320

108

42.25

22332

3632

CA/CC/MB/E/W33

160

340

114

50.2

22336

3636

CA/CC/MB/E/W33

180

380

126

69.9

22338

3638

CA/CC/MB/E/W33

190

400

132

80.9

22340

3640

CA/CC/MB/E/W33

200

420

138

93.5

22344

3644

CA/CC/MB/E/W33

220

460

145

120.6

22348

3649

CA/CC/MB/E/W33

240

500

155

152.9

22352

3652

CA/CC/MB/E/W33

260

540

165

064

22356

3656

CA/CC/MB/E/W33

280

580

175

237.1

29
30

Company Advantage

1  Factory price

We are factory. We sell to client direcrtly. So client will get good price.

2  Durable bearing

Our bearing all adopt high quality material. And it pass many items of testing to guarantee quality. It will help client save money.

3  After sales service and technical support

We will provide after sales service and technical support according reqiremnets of client.

4  OEM or Non Standard bearing

We can not only make stand bearing, but also manufacture non standard bearing according to requirements of client.

1.Packaging

1)Commercial Spherical Roller Bearings packaging: 1pc/plastic bag + color box + carton + pallet;

2)Industrial Spherical Roller Bearings packaging: a):plastic tube + carton + pallet; b). plastic bag +kraft paper + carton + pallet;

3)According to the requirement of customer of Taper Roller Bearings

2. Payment:

1) T/T: 100% should be paid before shippment.

2) L/C at sight. (high bank charge, not suggest , but acceptable )

3) 100% Western Union in advance. (specially for air shipment or small amount)

3. Delivery:

1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )

2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )

3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )

31

FAQ

1. Your factory how to control the quality?

A: All bearing parts before the production and the production process, strict inspection by 100%, including crack detection, roundness, hardness, roughness, and the geometry size, all bearing meet ISO international standard.

2. Can you tell me the bearing material?

A: We have chrome steel GCR15, stainless steel, ceramics and other materials.

3. How long is your delivery time?

A: If the goods are in stock, usually 5 to 10 days, if the goods are no stock for 15 to 20 days, according to the quantity to determine the time.

4. OEM and custom you can receive?

A: Yes, accept OEM, can also be customized according to samples or drawings for you.
